The SIMATIC ET 200eco PN is a compact block IO with PROFINET connection in IP 65/67 degree of protection for cabinet-free installation directly on the machine. The modules have a particularly rugged design on account of the fully-sealed zinc die-cast housing.

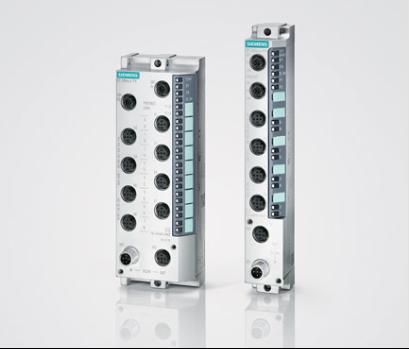

The SIMATIC ET 200eco PN is available both with 8 and 16 digital inputs or outputs in 2 different design sizes. The individual inputs and outputs and the power and bus are connected by means of an M12 connection system. The SIMATIC ET 200eco PN can be flexibly expanded via PROFINET and supports both star and line topologies within a system. Furthermore, the SIMATIC ET 200eco PN enables users to profit from an integrated diagnostics concept and from the high performance of PROFINET.
nload="javascript:if(>740)=740" align=center border=0>
Modules available:
Designation
Order No.
Additional Information
8 DI DC 24V 4xM12
6ES7 141-6BF00-0AB0
8 inputs, 2-wire BEROs supported, short-circuit and wirebreak diagnostics channel-by-channel
8 DO DC 24V/1.3A 4xM12
6ES7 142-6BF00-0AB0
8 outputs, current per output max. 1.3A, short-circuit and wirebreak diagnostics channel-by-channel
16 DI 24V/ DC 8xM12
6ES7 141-6BH00-0AB0
16 inputs/double assignment, 2-wire BEROs supported, short-circuit and wirebreak diagnostics channel-by-channel
8 DI 24V/ DC 8xM12
6ES7 141-6BG00-0AB0
8 inputs/single assignment, 2-wire BEROs supported, short-circuit and wirebreak diagnostics channel-by-channel
16 DO 24V/DC 1.3A 8xM12
6ES7 142-6BH00-0AB0
16 outputs/double assignment, current per output max. 1.3A, short-circuit and wirebreak diagnostics channel-by-channel
8 DO 24V/DC 1.3A 8xM12
6ES7 142-6BG00-0AB0
8 outputs/single assignment, current per output max. 1.3A, short-circuit and wirebreak diagnostics channel-by-channel
8 DO DC 24V 4xM12
6ES7 142-6BF50-0AB0
8 outputs/double assignment, current per output max. 0.5A, short-circuit and wirebreak diagnostics channel-by-channel
